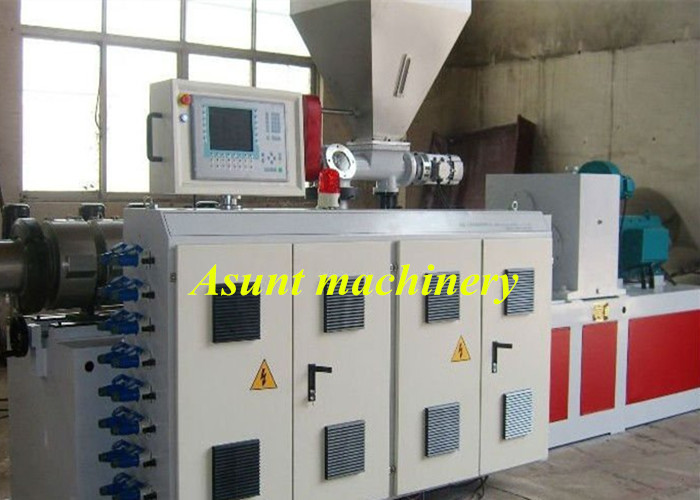

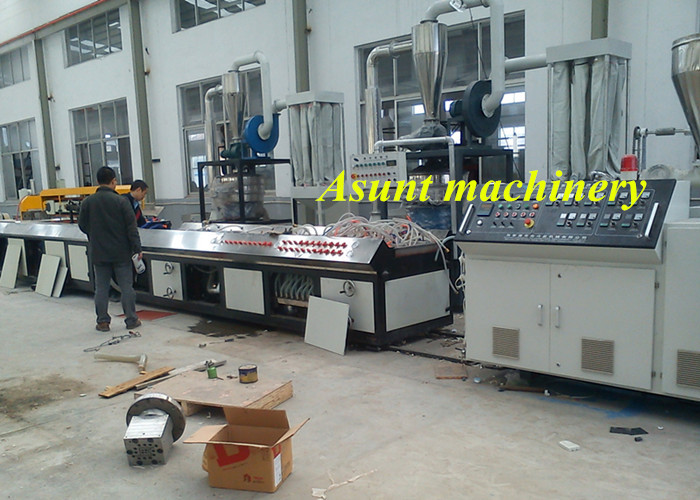

PVC Profile Extruder Machinery Capacity 400-600kg/h Production Line
Description
1. It can produce PE, PP or PVC wood-plastic of by applying specially designed screw, material cylinder,
mold and processing production technology and auxiliary machines for shaped material, the line is Wood-
plastic Extruding Production Line.
2.The wooden-plastic mixing extruding production line adopts special-designed screw stem, material
cylinder, moulds and processing technology.
3.Equipped with YE model auxiliary it can produce wooden-plastic profile. It is a new kind of environment
protection products which Mix plastic and waste wood fiber in proper proportion, adding plastic processing
extender.
4.It can produce, package box plate, frame material for door and window, floor board, outside products
extruded in high temperature and high pressure
wood-plastic extruder line. wood-plastic extruding line. wood-plastic production line
| Main Technical Specification |
| Model | JG-MSB80/156 | JG-MSB92/188 |
| Screw dia. | mm | Φ80/156 | Φ92/188 |
| Screw quantity | Piece | 2 | 2 |
| Screw speed | r/min | 1-38 | 1-32.9 |
| Main extruder power | KW | 55 | 110 |
| Heating power(approx) | KW | 36 | 45 |
| Output(approx) | Kg/h | 100-400 | 400-500 |
| Main Technical Specification of |
| Model | BF600 | BF900 |
| Max.product width | mm | 600 | 900 |
| Draw-off height | mm | 150 | 150 |
| Draw-off force | KN | 30 | 40 |
| Draw-off speed | m/s | 0-3 | 0-2.5 |
| Total power of auxiliary machine | KW | 350 | 40 |
| Cooling water consumption | m³/h | 9 | 12 |
| Compressed air pressure | Mpa | 0.6 | 0.6 |
APPLICATION
- General wall and ceiling decoration
- Wall partitioning and ceiling conversion
- Feature walls
- Place where high sanitary and easy maintenance is required including factories, schools, child care centers, hospitals and pubic areas.
- Damp areas including bathrooms, laundry rooms, basements and toilets
Advantages of our production Line
1. High quality: Several patents, advanced design, all-around service, independent research team, and
abundant experience in WPC.Official certificate: ISO9001/ CE certificate
2. Long life time: Screws and machine barrels are made of high-quality materials and specially processed.
The working life is up to 15,000 hours.
3. Advanced control system: The production process can (be assured) rely on PLC control system and
Omron sensors.
4. Famous international accessories: Siemens, Omron, ABB, etc.This line does need WPC pellet. It can
use mixed plastic and wood powder directly.
5. Excellent mixing ratio: Up to 70 percent of wood powder could be added, under the control of some
special formulas.
6.This line is a professional line to producce WPC(wood plastic composit) product. It is mainly used to
produce the WPC window&door profile, foam profile, WPC floor, WPC wall panel and other WPC products.
This line is featured for high automatic, steady performance, large output and high effiency.
