Elelectric Cable Trucking PVC Profile Extrusion Line PLC Control
Description
PVC profile extrusion line is mainly used at PVCdoor, window profile, window sill, ceiling, edge banding,multi-holes cable pipe(four-hole, six-hole, seven-hole, nine-hole and etc.
Features and application

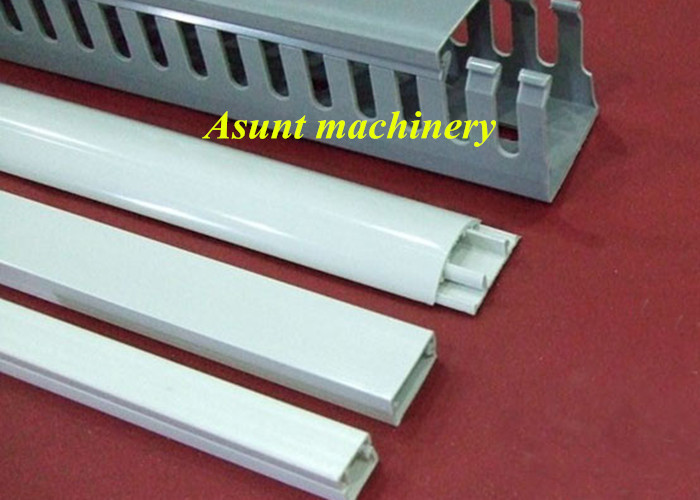

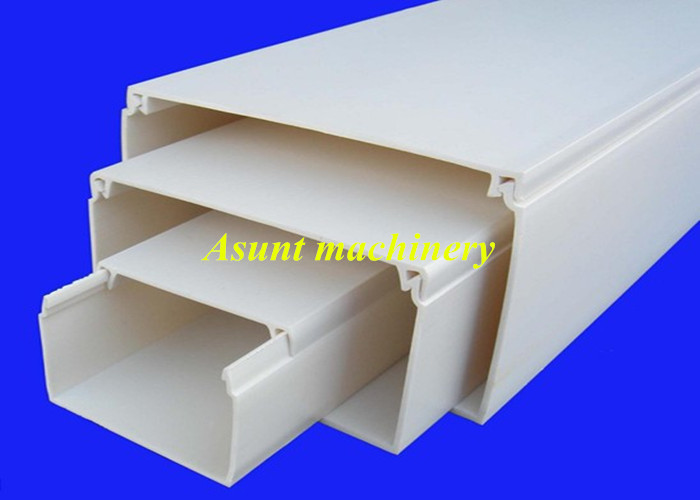

1 PVC profile production line suitable to produce PVC profile, multi-hole cable duct(4-hole, 6-hole,
7-hole, 9-hole option).
2 According to different profile section and mold to choose different conical or parallel twin screw
extruder and provide relative vacuum sizing tank, haul-off, cross direction saw cutter, stacker auxiliary
equipments, The capacity of main extruder from 150-450kg/hr for option.
3 Special design for haul-off by particular up and down technology of our company, working stable, reliable and heavy duty force.
4 Vacuum sizing table having particular big eddy flow cooling system for cooling and sizing easy for
high speed extrusion necessary.
5 The action of cross direction saw cutter keeping synchronous with haul-
off controlled by import PLC controller, reasonable design, running stable, auto fixed length cutting,
assembled swarf suction device.
6 According to different mold, the vacuum sizing tank could be provided of 4 meter, 6 meter, 8 meter,
11 meter models.
7 Providing parallel twin screw extruder for high speed extrusion

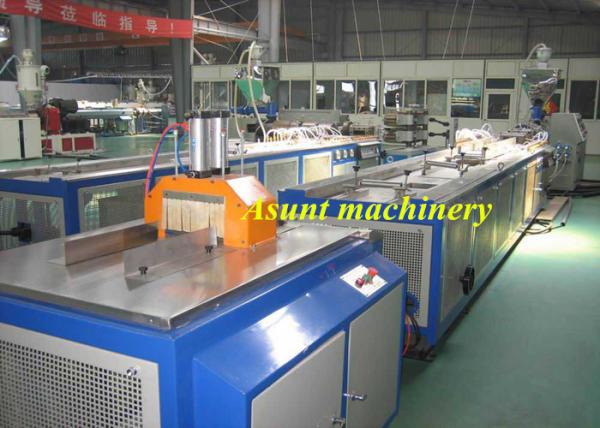

8. This production is composed of conical twin-screw extruder, vacuum calibration table, haul-off, cutter
and stacker.
9. Coordinated with different profile break-section and mould to produce PVC door & window profiles,
foamed special shaped materials, decoration plate material, profile and multi-hole wire plastic products,
etc
Eletrical Parts
1. Main motor frequency controller : FUJI or ABB
2. Temperature controller : OMRON or RKC
3. AC controller : Schneider or siemens
4. Thermal overload relay : Schneider
5. Switch : DELIXI or Schneider
Specifications
| Production line model | FSY-150 | FSY-240 | FSY-300 |
| Calibration table length(mm) | 4000 | 6000 | 9000 |
| Max profile width(mm) | 150 | 240 | 300 |
| hauling speed(m/min) | 0-8 | 0-6 | 0-5 |
| Total power(kw) | 70 | 95 | 110 |
