Single Screw Extruder PET Recycling Machine With Water cooling tank
Specifications:
|
No.
|
Machinery
|
Usage
|
|
1
|
belt conveyor
|
feed the clean films or bags into the cutting compactor
|
|
2
|
Metal detector
|
check whether there is metal in the films or bags, protect the blades
of cutting compact and screws
|
|
3
|
Cutting compactor
|
cut the materials again and make materials shrink, then force feed
the shrunk material into the extruder. for the same capacity, the
power consumption is only 50% of the agglomerator.
|
|
4
|
Single screw extruder
|
for plasticizing the materials and exhausting the gas, it is made of
38CrMoAlA generally.
|
|
5
|
hydraulic screen changer
|
filter the impurities, improve the granules quality
|
|
6
|
Pelletizer
|
includes mould and pelleting blades, we can provide both vertical type
and horizontal type
|
|
7
|
Water cooling tank:
|
use circular water for cooling the granules immediately after pelleting cut
|
|
8
|
Vertical dewatering machine
|
convey the granules helically from bottom to top, the rotary rotor and
the stainless screen help to drain the water, and convey the granules
out from the machine
|
|
9
|
Blower system
|
use the blower to blow the granules to the storage silo through the
SS304 pipe
|
|
10
|
Storage silo
|
for storing the final films
|
Description:

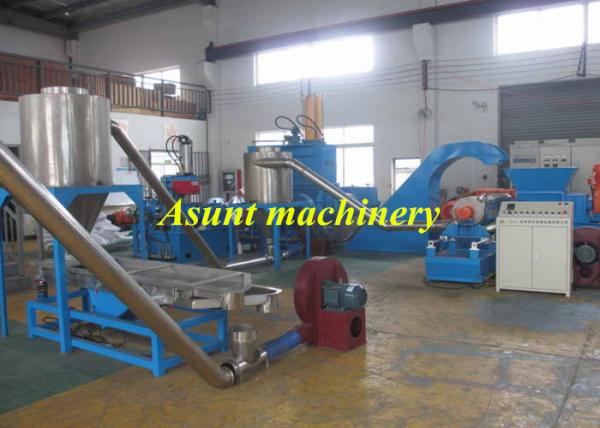

1. This production line consists of belt conveyor, metal detector, single-screw extruder, hydraulic screen changer, mould, water-ring pellet cutter, vibration sieve, blowing system and storage silo.
2. Production Process:
Feeding → Compacting → Extruding → Cooling → Wind blowing → Cutting → Selecting.
3. Production capacity: 150-550kg/h.
After drying the water content can reach 2-5% (according to the thickness of film).
4. This whole production line was automatic control, structure arrangement compact, high production efficiency, nice cleanness.
5. This series PP PE film pelletizing line adopt proper extruding moulds, screws and auxiliaries machine, PE/PP water-ring pelletizing machine can used for granulating many kind of raw material such as PE,PP,XPS,EPS,ABS and so on.
6. It owes the advantages of simple structure, easy operation, high capacity, low energy consumption, even granule-cutting, safety, reliability etc.
7. Extruder has the vacuum vented design which can exhaust the vapor or gas during the production, so that the output can be more stable and the pellets are more dense.
8. According to the material and special techinics demands,the material of cylinder can use high quality nitrided steel,corrosion proof or antifriction with corresponding process
9. Responsible for the installation and debugging, equipment warranty for one year.
Applications:
Water ring plastic pelletizing machine is a professional line for recycling waste PE/PP, and turn them into small granules. This line is widely used in most plastic factories for its cheap price and high efficiency. For years research and practice, our factory has improved its function to make the whole line more efficient and the control more accurate.
Competitive Advantage:
1. High-efficient force-feeder ensures high capacity feeding, low energy consumption;
2. Single screw extruder, equipped with specially designed screw & barrel, venting system, has a very good output capacity;
3. Pelletizing style: Strand cutting under water with extrusion mould, ensures good shape;
4. Auxiliary machine: Pellets dryer & vibration sieve.
5. High efficiency, working stable, large capacity etc.
6. Adopt Siemens PLC control system
PE Recycling and Pelletizing Production Line
