Professional PERecycling Machine Water ring plastic pelletizing machine

Qingdao Asunt Machinery co.,Ltd
Contact Now

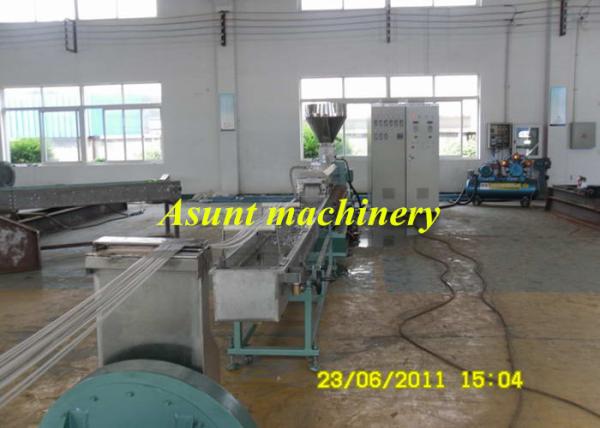

Professional PERecycling Machine Water ring plastic pelletizing machine

  • 1
  • 2
  • 3

Brand Name : ASUNT

Model Number : AS-65

Certification : CE

Place of Origin : Qingdao China

MOQ : 1 set

Price : 55000$-75000$ per set

Payment Terms : L/C, T/T, Western Union

Supply Ability : 30 sets per quarter

Delivery Time : 40 working days after received your payment

Packaging Details : Packed in plywood packing case, stretch film inside,40 feet container for loading

Product Name : PE recycling and pelletizing extrusion machine

Screw diameter : 51-92mm

Voltage : 380V

Main motor power : 18.5-110kw

Capacity : 500kg/h

Material : PE

Contact Now

PE Recycling and Pelletizing Production Line

Specifications:

No.

Machinery

Usage

1

belt conveyor

feed the clean films or bags into the cutting compactor

2

Metal detector

check whether there is metal in the films or bags, protect the blades of

cutting compact and screws

3

Cutting compactor

cut the materials again and make materials shrink, then force feed the

shrunk material into the extruder. for the same capacity, the power

consumption is only 50% of the agglomerator.

4

Single screw extruder

for plasticizing the materials and exhausting the gas, it is made

of 38CrMoAlA generally.

5

hydraulic screen changer

filter the impurities, improve the granules quality

6

Pelletizer

includes mould and pelleting blades, we can provide both vertical

type and horizontal type

7

Water cooling tank:

use circular water for cooling the granules immediately after pelleting cut

8

Vertical dewatering machine

convey the granules helically from bottom to top, the rotary rotor

and the stainless screen help to

drain the water, and convey the granules out from the machine

9

Blower system

use the blower to blow the granules to the storage silo through the

SS304 pipe

10

Storage silo

for storing the final films

Description:

1. This whole production line was automatic control, structure arrangement compact, high production

efficiency, nice cleanness.

2. Production Process:

Feeding → Compacting → Extruding → Cooling → Wind blowing → Cutting → Selecting.

3. Production capacity: 150-550kg/h.
After drying the water content can reach 2-5% (according to the thickness of film).

4.This production line consists of belt conveyor, metal detector, single-screw extruder, hydraulic screen changer, mould, water-ring pellet cutter, vibration sieve, blowing system

and storage silo.

5. This series PP PE film pelletizing line adopt proper extruding moulds, screws and auxiliaries machine,

PE/PP water-ring pelletizing machine can used for granulating many kind of raw material

such as PE,PP,XPS,EPS,ABS and so on.

6. It owes the advantages of simple structure, easy operation, high capacity, low energy consumption,

even granule-cutting, safety, reliability etc.

7. Extruder has the vacuum vented design which can exhaust the vapor or gas during the production, so

that the output can be more stable and the pellets are more dense.

8. According to the material and special techinics demands,the material of cylinder can use high quality

nitrided steel,corrosion proof or antifriction with corresponding process

9. Responsible for the installation and debugging, equipment warranty for one year.

Applications:

Water ring plastic pelletizing machine is a professional line for recycling waste PE/PP, and turn them into small granules. This line is widely used in most plastic factories for its cheap price and high efficiency. For years research and practice, our factory has improved its function to make the whole line more efficient

and the control more accurate.

Competitive Advantage:

1. High-efficient force-feeder ensures high capacity feeding, low energy consumption;
2. Single screw extruder, equipped with specially designed screw & barrel, venting system, has a very

good output capacity;
3. Pelletizing style: Strand cutting under water with extrusion mould, ensures good shape;
4. Auxiliary machine: Pellets dryer & vibration sieve.

5. High efficiency, working stable, large capacity etc.

6. Adopt Siemens PLC control system

PE Recycling and Pelletizing Production Line
