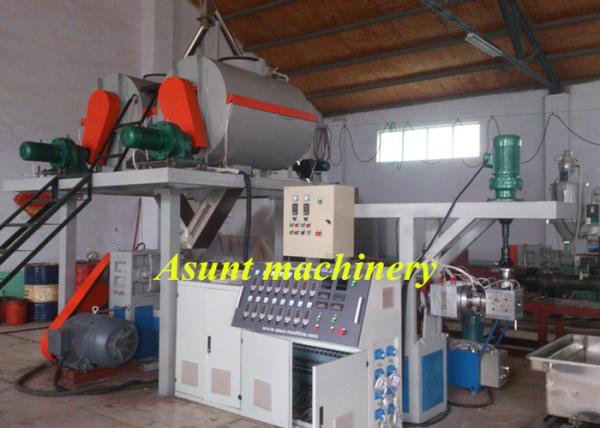

Single screw Twist Plastic Rope Machine / Plastic Extrusion Machinery

Brand Name : Asunt machinery

Model Number : AS-6-20

Certification : CE

Place of Origin : Qingdao China

MOQ : 1set

Price : US$70000-80000

Payment Terms : L/C, T/T, Western Union

Supply Ability : 25 sets per quarter

Delivery Time : 40-50 working days after received your payment

Packaging Details : Plywood case with heat shrink film

Product Name : AS-6-20 twist rope Extruder Machinery

Screw design : Single screw

Main motor power : 30-55kw

Standard : CE

voltage : 220/380v

Screw diameter : 65-90mm

Film width : 600-1200mm

Rope diameter : 6-20mm

Contact Now

Single screw Twist Plastic Rope Machine / Plastic Extrusion Machinery

AS-6-20 Twist Rope Extuder Machinery

Specifications:

Type

Sw-65

Sw-80

Sw-90

Screw Diameter mm

65

80

90

Screw Rotate Speed r/min

30-70

30-70

30-70

Stretching Rate

1:5

1:5

1:5.5

Total Power kw

40

60

78

Productivity kg/h

40-60

60-80

80-125

Dimension m

17.5×2×2

21.5×2.1×2

26×2.2×2

Gross Weight T

2.8

3.5

4

Description:

1. Automatic controling system: siemens PLC, frequency converter, seven parts for heating system. The

entire production line adopts the originally imported new control system of PLC programmable computer,

guaranteed highly and steadily reliable controls of the production line.

2. Single screw extruder: high speed extruders adopts notched barrel , shielded screw with special mixing

structure ensures the stability of high extruding and the plasticizing quality.

3. Die head: 80mm in general has 120holes, there exist pressure sensor and metering pump to control

the pressure and the flow, at the same time has filter to makes the melted physical and

chemical through

soomthly.

4. Cooling system: suitable and steady temperature ensure the twine soft and shiny.

5. NO 1 and NO 2 stretching:it's made of ss , steady speed for strtching and tensiling, 5 or 7 rollers

for each, the ratio of draw is 4-10 times

6. Oven heating: stretching plate,curved design,temperature could got up to 120, it's better to

heat the yarn

and stretch , ratio of draw is 4-12times.

7. Split roller part: stretch and open the net into dish wire type in order to twist strong and firm

8 . Closing wire equipment: quantity of take-up heads could accordingt o your request, has separate switch to control each take-up reel, the size of bobbin could be adjusted.

Applications:

1. material:recycled Granula or Flake

2. Reasonable Structure ,Stable Performance

3. used for rope

Competitive Advantage:

1. High capacity

2.Long life

3.High speed extrusion

4.Low energy consumption
