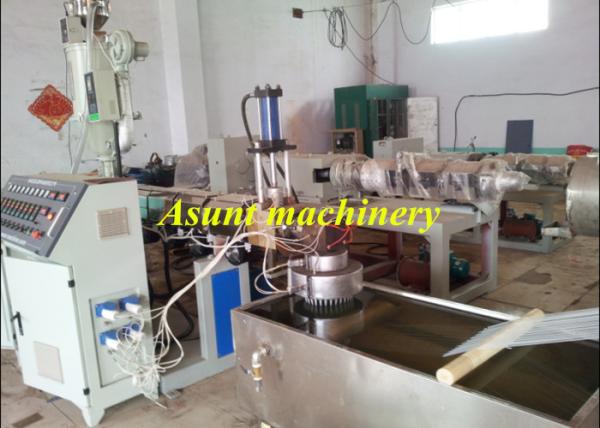

PP PE Nylon Plastic Monofilament Extrusion Machine For Making Ropes
Description
1. plastic extruder mainly for extruding PE, PP.
2. plastic extruder Combined with corresponding auxiliary machinery (including molding head),
it can process many plastic products: films, danline,monofilament.
4. plastic extruder adopting involute gear drive, it mainly features advanced design, high quality,
excellent plasticization, low energy consumption, low noise, stable operation, large loading capacity,
long service life, etc.
5. plastic extruder barrel screw and gear boxes are all made by ourself so we can guarantee you
the quality compared with other suppliers.
6. Speed reducer:The gear and the axis class components have used the high strength alloy
steel material quality.
7. Screw structure designed specifically for customer need.
Specification
|
Model
|
ND-55
|
ND-65
|
ND-75
|
ND-80
|
ND-90
|
|
Screw material
|
38#CrMoALA
|
38#CrMoALA
|
38#CrMoALA
|
38#CrMoALA
|
38#CrMoALA
|
|
Screw dia.
|
55mm
|
65mm
|
75mm
|
80mm
|
90mm
|
|
L/D
|
30/1
|
30/1
|
30/1
|
30/1
|
30/1
|
|
Rotate speed
|
30-70 r/min
|
30-70 r/min
|
30-70 r/min
|
30-70 r/min
|
30-70 r/min
|
|
Motor power
|
15kw
|
18.5kw
|
22kw
|
32kw
|
40kw
|
|
Heating power
|
10-15kw
|
15-20kw
|
25-35kw
|
30-40kw
|
35-50kw
|
|
Output
|
40-50kg/h
|
50-60kg/h
|
50-80kg/h
|
60-90kg/h
|
70-100kg/h
|
Components:
The line consists of Extruder,Hydraulic Screen Changer,Melt Metering Pump, Die and Head,
Cooling System ,First Hauling Machine,Oven, Second Hauling Machine, Cutting and Winding
Machine.etc.
Extruder screw is of optimal structure,nitrogen treatment;
Die and Head made of special alloy steel,through thermal treatment;
Cooling System all made of stainless steel;
Five-roller Hauling Machine;
Double-winding machine of automatic coiling function.
PERFORMANCE&ADVANTAGES:
- Longer life of screw & barrel
- AC Invertor & Motor which synchronizes the entire extruder
- PP & LD can be processed due to its special screw design
- Latest technology used to force the melt into the die very effectively
- Take up small area
- Simple operation
- High output capacity
- Low maintenance
