introduction

It is the production line of the most advanced technology, most mature crafts and one of the most stable machines, its comprehensive capacity is 30% higher than the domestic similar equipment. The production line is used to produce PS, PP, PE etc. sheet products. Qingdao Asunt machinery has developed the CPET Sheet production line which is still higher than the domestic technology. The PET crystallization and drying system has absorbed the most advanced international technology, has the advantages of low dew point, low energy consumption, this highly enhance the performance of the complete production line.

Application:

PET (APET, PETG, and CPET) sheet has the advantages of good processability, transparent, insulation and innocuity, environment friendly and recyclable. It is used to the food packaging field, is a perfect product to replace the PVC product.

MAIN PART OF SHEET EXTRUDER MACHINE

1)gearbox model: hardface model 250 ,speed rato:14:1

(made in china xiaoshan)

2) Screw diameter: 100mm,L/D ration 32:1(zhoushan)

3)Screw rotating speed: 0—90rpm

4)Screw material: 38CrMOALA

5)Screw heat treatment Nitriding hardness≥HV85,depth:0.5—0.7mm

6)Barrel heat treatment Nitriding hardness≥HV950,

depth: 0.5—0.7mm

7) Main motor power: 55kw(made in china)

8) screw heating power:6area x7kw/area=42kw

9)Tee joint heating and net change device heating power is :2area x3power/area=6kw

10) T-die Runner: clothes-hanger pattern

11)t-die width :800mm,heating power=15kw( 5area x3 kw/area=15kw)

12)hydraulic net change device and metering pump,hydraulic station motor:2.2kw,metering pump motor power3kw

THREE ROLLER PART

1)three roller size :350x770mm(made in china )

2) Three roller material: NO.45

seamless steel tube, inner surface of roller have water circulation system (made in china)

3)Three roller motor:5.5kw

4)Three roller reduction box:wpa-120 speed ratio :120-A

4)Three roller model :45degree arrange(the same as above picture)

5) Three rollers bounce: ≤0.011mm

6) Three rollers surface roughness≤Ra 0.025

7) Three rollers transmission: one motor control three roller simultaneous transmission

8) Three rollers linear speed: 20 m/min

(Traction) part

1)Rubber roller: 180×770mm (place of origin)

2)Traction roller: 180×770mm (made in our factory)

3)rewinding sheet roller: 2 pieces (industry standard)

4)Lateral sheet rewinding device (two sides): 1 set

5)Cutter: 1 group

6)Motor: 3KW-6

7)Speed reducer 100, speed ratio: 100-A (JIEPAI, made in hangzhou)

8)Transition roller and sliding rollers altogether 7 pieces

9)Traction speed: 21 m/min

Electrical Part

1)converter and motor : 55KW (1 set), 5.5KW (1 set) ,3.7kw(1set),made in china

3)Solid state relay: Lanning (Sino-US joint venture)

4)Breaker and A.C. contactor: LS, made in S. Korea

5)Temperature controller, made in Shanghai

6)Aviation plug: made in Beijing

7)Other electrical components: CHINT, made in China

8)Thermal tube radiator seat: made in Yueqing, Zhejiang

plastic sheet extruder machine

sheet production line

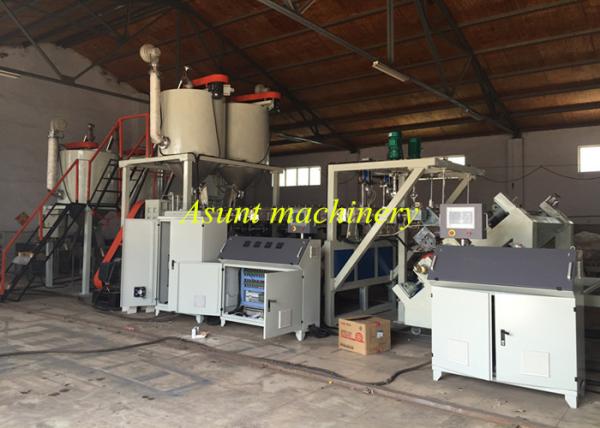

Recycled and virgin PET Sheet Making Machine film co - extrusion machine Images
