2-10mm Clear Soft Medical Catheter Tube Extrusion Machine Cleat And Soft

2-10mm PVC Clear Soft Medical Catheter Tube Extrusion Machine

A. Main Application:

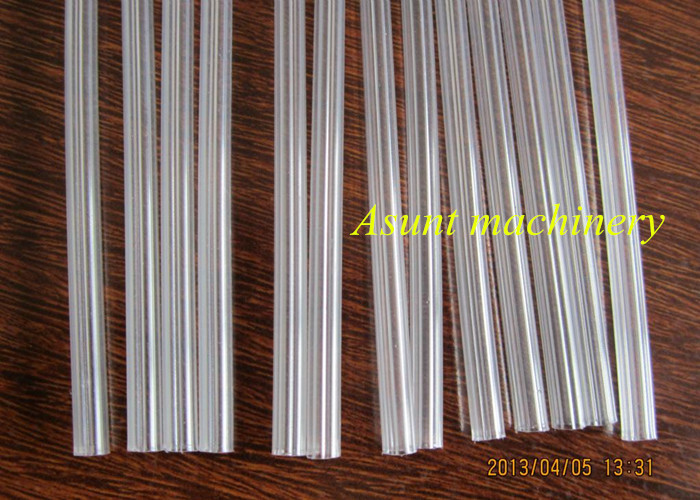

applicable to the producing of all different kinds of high precise and efficient medical soft tubes, such as perfusion set, infusion set, catheter tube, nasal tube, suction tube, trachea cannula, anaesthesia tube, oxygen tube, latex tube and PVC short tube of disposable infusion apparatus and other medical soft tube product.

B. Main Features:

B1. The main extruder adopts high stable AC motor, double reduction hardened gear box drive, to ensure the energy saving production, smooth operation and quiet as well as long service life.

B2. High-end temperature control configuration system, temperature control accuracy of ± 1.5°C, to ensure extrusion Products and the roundness / dimensional accuracy of the pipe materials.

B3. Requirements according to different configurations using Japan Mutsubishi PLC controlling technology and system, human-computer interface system, on-line automatic measuring

diameter, automatic feedback automatic adjustment system.

B4. The proper configuration of the hose machine meets high efficiency, high precision, high-quality and maximum economy requirements of modern production, reduce the labor intensity

C. Main parts of the production line:

C1. High precise Φ50mm single screw extruder(SJ50A, Japan OMRON temperature controller, Schneider contactor, 11KW driving motor)
C2. High precise stainless steel water cooling and calibrating tank(L=4,000mm)
C3. Auto high precise and efficient individual 2 wheel haul-off unit
C4. High precise quick changing style medical catheter tube mould(1-12mm mostly)
C5. Auto high precise and efficient Japan Mitsubishi PLC Controlling fixed-length cutting and transmitting unit(SZC15B, TECO servo motor and servo controller; tube cutting length: 40mm-2,000mm; tube cutting angle precision:±3 degree;Tube cutting length tolerance:±2mm when total length=2,000mm, the highest precision in China)

C6. Stable producing speed: 60-90M/min, the highest speed in China

Series & Specification:

1 Capacity: 15-40kgs/hour;

2 It can process materials like pharmed PVC, PU;

3 Oversea service, installation, staff trainning and technical support.

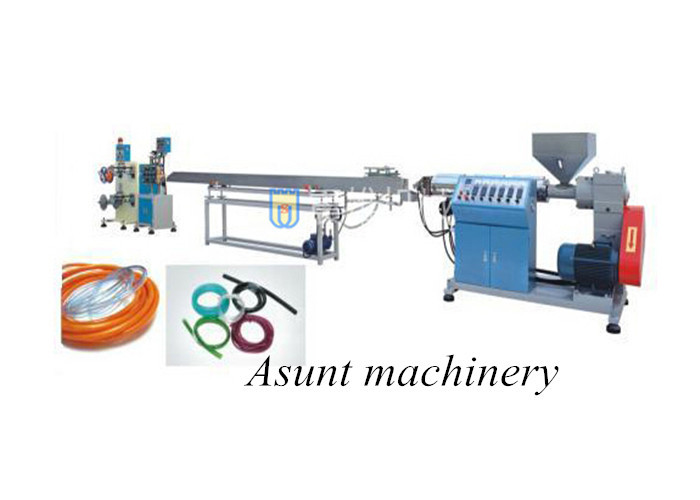

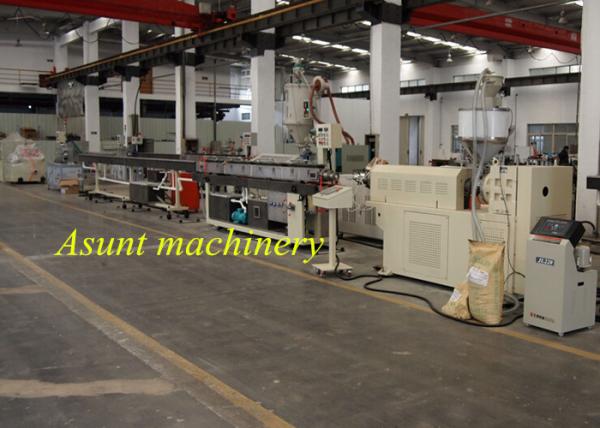

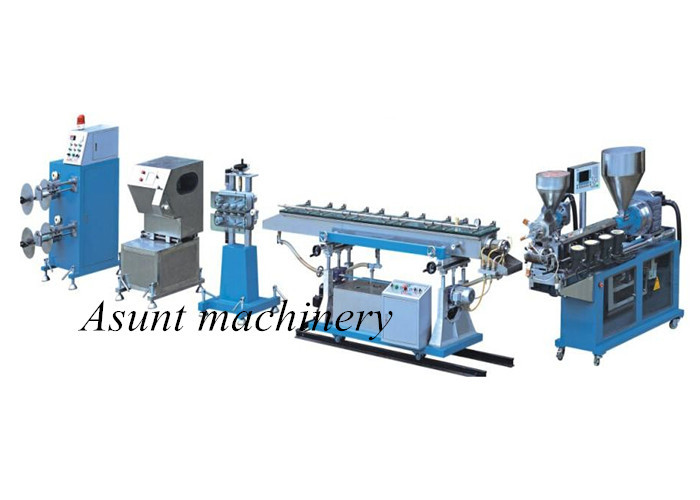

1. The extrusion Line consist of the following parts:

Precision extruder---high-precision machine head die---vacuum calibration cooling water tank---medical class tractor---convey collection device----intergral precision gas supply system and outer diameter measuring instrument.
